Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
one-stop design & production & installation service of packaging equipment and feed equipment supplier
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | BlueRay |
| Certification: | CE ISO |
| Model Number: | DCS-50F |
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | $5,000.00 - $10,000.00 / Set |
| Packaging Details: | 1, Each packing machine will be packed in a big wooden case, then in the container 2, Customized needs available |
| Supply Ability: | 100 Set/Sets per Month river sand packing machines |
| Packaging Type: | Open Mouth Bags, Bags, Barrel | Dimension(L*W*H): | 3000*1200*3200mm |
|---|---|---|---|
| Product Name: | 50kg Wet River Sand Bag Packing Machines | Three Load Cell: | High Weighing Accuracy |
| Three Travelling Cylinder: | Feeding Speed With Fast-midium-slow | Control Box: | Full Touch Screen Panel |
| Automatic Bag Clamp: | Sensor Control | Packing Material: | Powder |
| Sewing Machine: | Full Automatic | OEM Service: | 15 Years R&D Experience |
| Weight: | 1500KG | Power: | 3KW |
| Packaging Material: | Wood, River Sand Packing Machines In Wooden Case | Driven Type: | Pneumatic |
| Voltage: | 220V/380V/50HZ | Automatic Grade: | Semi-automatic |
| Type: | Other | Port: | Shanghai Or Any Port Of China |
| High Light: | 50kg Building Materials Packing Machine,0.7Mpa Building Materials Packing Machine,50kg Sandbag Packing Machine\ |
||

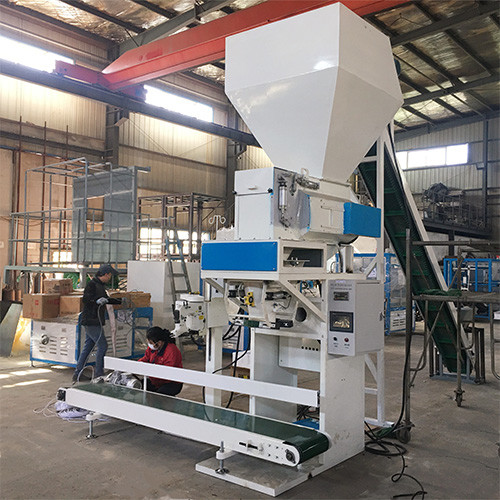

1, Product Name: Best price automatic 50kg wet river sand bag packing machines
2, Item: DCS-50F
|
Application materials
|
powder
|
||
|
Display Resolution
|
5g, 10g
|
||
|
Weighing Range
|
5-50kg/bag or customized needs
|
||
|
Precisions
|
+/-(0.1-0.2)% FS
|
||
|
Packing Capacity
|
240-360 bags/hour
|
||
|
Dimention(L*W*Hmm)
|
3000*1200*3200mm, the size can be customized according to your site
|
||
|
Power Supply
|
AC220V/380V, 50HZ, 1P/3P, customized available
|
||
|
Air Source
|
0.5-0.7 Mpa
|
||
|
Power
|
3KW
|
||
|
Working Temperature
|
-10~40 ℃
|
||
|
Relative Humidity
|
≤90% RH(Non-condesing)
|
||
Screw feeding type packing machine suit for pack powder of any industry,such as flour, starches, lime powder, cement, fertilizer,silica sand powder, nitrate of potash, ammonium sulfate etc
This bagging machine is especially designed for pack materials(products) into open mouth bags,such as plastic woven bags,kraft bags,paper-plastic compound bags,sacks,barrel etc
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing
|
Control Box+Full touch screen panel |
Three pieces of Load Cell(weighing sensor)+Famous brand load cell, more stable |
|
|
Dual Screw Feeding Mechanism+Dual screw design(coarse screw+fine screw) |
Automtic Bag Clamp/Loose Mechanism+Photoelectric sensor switch |
|
|
Dust Air Outlet+All of our packing machine will install air outlet |
Automatic Sewing Machine+Automatic bag top folding device(opitional) |
|
|
Item
|
DCS-50WF
|
DCS-50F
|
DCS-50SF
|
|
Application materials
|
Power of any industry
|
||
|
Display Resolution
|
5g, 10g
|
||
|
Weighing Range
|
5-50kg/bag or customized
|
||
|
Precisions
|
+/-(0.1-0.2)% FS
|
||
|
Packing Capacity
|
120-180 bags/hour
|
240-360 bags/hour
|
500-600 bags/hour
|
|
Dimention(L*W*Hmm)
|
3000*1200*2600
|
3000*1200*3200
|
4000*1200*3700
|
|
Power Supply
|
AC220V/380V, 50HZ, 1P/3P, customized available
|
||
|
Air Source
|
0.5-0.7 Mpa
|
||
|
Power
|
3KW
|
3KW
|
6KW
|
|
Working Temperature
|
-10~40 ℃
|
||
|
Relative Humidity
|
≤90% RH(Non-condesing)
|
||
-15 years professional manufacturer of packing machines, sewing/heat sealing machine, automatic palletizer
machine, elevator/conveyor etc
-More than 10 person engineers team, OEM service and customized design are available
-3000㎡ working shop, high production capacity
-Sales and after sales team 24 hours online service
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-testing-packaging and transport-after service
Q1: How could I choose the right packing machine?
A: We have various item of packing machine to suit for pack different materials(products), just let me know your
product and requirement, we will choose the suitable item and make a drawing for you to confirm. Also your customize design are availbale, we have more than 10 person engineers team and R&D team.
Q2: What's service you can provide if we buy your machine?
A: 1, One year quality guaranteed, during this guarantee period, no matter what’s kind of parts damaged, we will provide
free change for you. All equipment for more than a year warranty, exchange of damaged parts, only charge a cost of
spare parts.
2, We will provide you the guide service on the operation of the machine.
3, If required, we will dispatch technician to your country for installation guide, commissioning& adjusting the machine and training the workers on conditon that you need affords all cost from China to your company including food,
accommodation, transportation etc and extra USD80 per day.
Q3: What's your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you
pay the balance.
Q4: What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q5: How about your delivery time?
A: Generally, it will take 30 to 40 days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
Q6: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A: 1, We keep good quality and competitive price to ensure our customers benefit
2, We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
