Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
one-stop design & production & installation service of packaging equipment and feed equipment supplier
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | BlueRay |
| Certification: | ISO |
| Minimum Order Quantity: | 1 Unit/Units |
| Price: | $8,000.00 - $10,000.00 / Unit |
| Packaging Details: | Metal framework with wooden case, keep the filling machine more safty |
| Supply Ability: | 100 Set/Sets per Month semi auto sand packing/filling machine |
| Type: | Filling Machine | Application: | Chemical, Commodity, Food, Machinery & Hardware, Feed, Grease, Grain, Food, Fertilizer, Sugar, Plastic, Etc |
|---|---|---|---|
| Packaging Type: | Bags | Packaging Material: | Metal, Wood |
| Automatic Grade: | Semi-automatic | Driven Type: | Electric |
| Voltage: | 220V/380V | Power: | Approach 3KW |
| Dimension(L*W*H): | Customized | Weight: | 1000kg |
| Product Name: | Semi Auto Sand Packing/filling Machine | Material: | Carbon Steel, Stainless Steel |
| Weighing: | 5-50kg | Suitable For Material: | Granule,flake, Lump,coarse Powder And Mixer |
| Advantage: | Three-grade Feeding Speed, Three Sensor, Full Touch Screen | Experience: | 10 Years In Bagging Machine |
| OEM, ODM: | Yes | Service: | Reply Within 24 Hours |
| High Light: | Sandbag Filling And Sealing Machine,1000kg Sandbag Filling And Sealing Machine,Belt Sandbag Filling Machine |
||
why should choose us:
1. Experienced
over 15years experience on biomass pellet line and wood pellet making machine.
2. Professional
professoinal sales and engineers team design according to customers needs
3. Certification
high quality as all of our wood pellet making machine been approved CE certification.
4. Performance
already suplied over 100 turn-key projects with great satisfaction.
5. Manufacturer
We are manufacturer,customers can get better wood pellet making machine price and directly after-sales service.

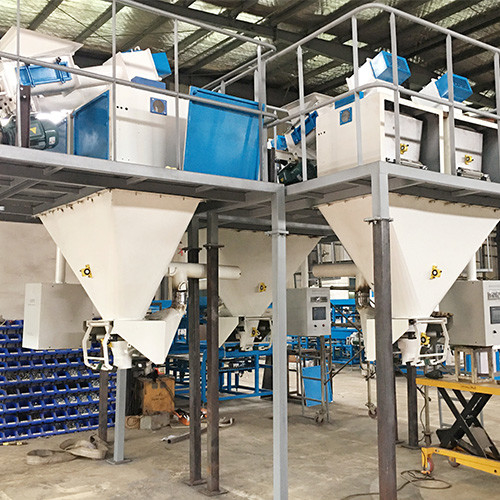

1, Product Name: belt-type filling machine
2, Item: DCS-50D
|
Application materials
|
flake,lump,block,aggregation,mixture products of any industry
|
||
|
Display Resolution
|
5g, 10g
|
||
|
Weighing Range
|
5-50kg/bag or customized needs
|
||
|
Precisions
|
+/-(0.1-0.2)% FS
|
||
|
Packing Capacity
|
300-420 bags/hour
|
||
|
Dimention(L*W*Hmm)
|
3000*1500*3500mm, the size can be customized according to your site
|
||
|
Power Supply
|
AC220V/380V, 50HZ, 1P/3P, customized available
|
||
|
Air Source
|
0.5-0.7 Mpa
|
||
|
Power
|
3KW
|
||
|
Working Temperature
|
-10~40 ℃
|
||
|
Relative Humidity
|
≤90% RH(Non-condesing)
|
||
Belt feeding type packing machine suit for pack flake,lump,block,aggregation,mixture products, such as gravel,pebble,stone,manure,organic fertilizer, soil, sawdust,animal feed(big size/mixture),coal briquette, aluminum sulfate etc
This bagging machine is especially designed for pack materials(products) into open mouth bags, such as plastic woven bags,kraft bags,paper-plastic compound bags,sacks,barrel etc
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing
|
|
|
|
|
|
Control Box+Full touch screen panel |
Three pieces of Load Cell(weighing sensor)+Famous brand load cell, more stable |
Dual Screw Feeding Mechanism+Dual screw design(coarse screw+fine screw) |
Automtic Bag Clamp/Loose Mechanism+Photoelectric sensor switch |
Dust Air Outlet+All of our packing machine will install air outlet |
Automatic Sewing Machine+Automatic bag top folding device(opitional) |
All equipments will package in the
wooden case and fixed by the steel
then in the cantainer
We will transport the machine to
Shanghai port(or any port of China you need)by the truck
All machines will in container then
ship to the sea port of your country by the boat
- 15 years professional manufacturer of packing machines,sewing/heat sealing machine,automatic palletizer
machine,elevator/conveyor etc
- More than 10 person engineers team,OEM service and customized design are available
- 3000㎡ working shop, high production capacity
- Sales and after sales team 24 hours online service
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-testing-packaging and transport-after service
